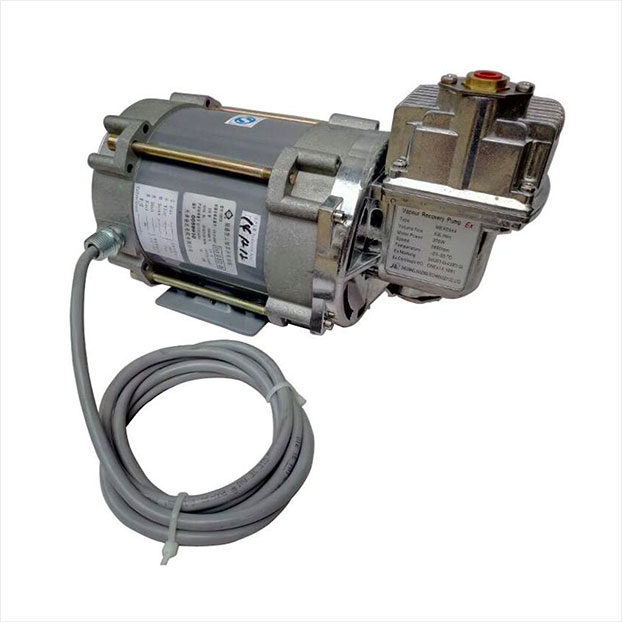

MEX0554 Vapor Recovery PUMP
Characteristic
Control pump speed according to the environmental for energy saving
Can adjust proportion of the oil and vapor
Small Volume low power
Can run two nozzles at the same time
Product catalogue (Instruction manual)
Download| Technical Specification | ||
| Model | MEX0554-Ⅰ | MEX0554-Ⅱ |
| Descriptions | single pump | double pump |
| Flow Rate | 75L/min | 150L/min |
| Speed | 2800RPM | |
| Power | 370W | |
| Voltage & Current |
220V-2A 380V-1A |
|
| Thread | G1/4 | |
| Ex-Mark | Exd Ⅱ AT3 Gb | |
| Protection Level | IP54 | |
