Pulser

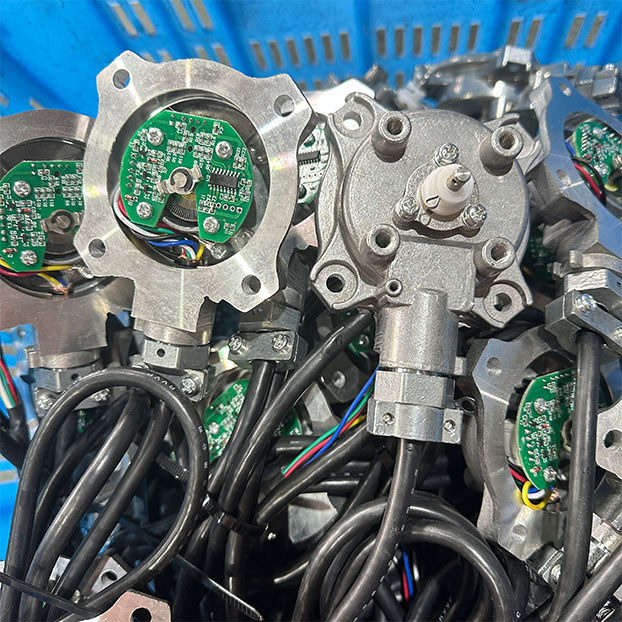

Pulser FBCGQ-4 explosion-proof sensor (hereinafter referred to as the sensor) the explosion-proof performance in line with the GB3836.1-2000 "electrical apparatus for explosive gas atmospheres - Part 1: General requirements" GB3836.2-2000 "explosive atmosphere of electrical equipment - Part second: Flameproof Enclosures" d "rules made of explosion-proof explosion-proof mark for the ExdIIBT4. Suitable for containing IIA IIB automatic measurement and automatic control temperature classes for T1~T4 group explosive gas mixture zone 1 zone 2 locations. Installed in the inside of the product.
Product catalogue (Instruction manual)
Download| Data of Pulser | ||||

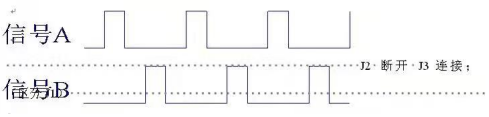

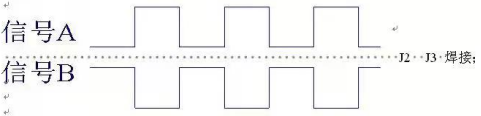

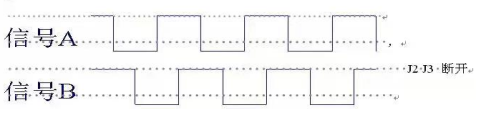

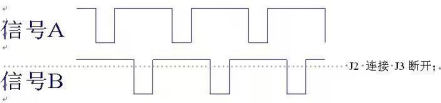

| Model | Connection | Pulses/revolution | Output waveform | Phase difference |
| Board 1 | J1 connects J2, J3 disconnects | 50 |
 |
|
| Board 2 | J1, J2, J3 disconnects | 100 |
 |
90° |
| Board 3 | J1, J3 connects J2 disconnects | 50 |
 |
|
| Board 4 | J2, J3 connects J1 disconnects | 100 |
 |
|
